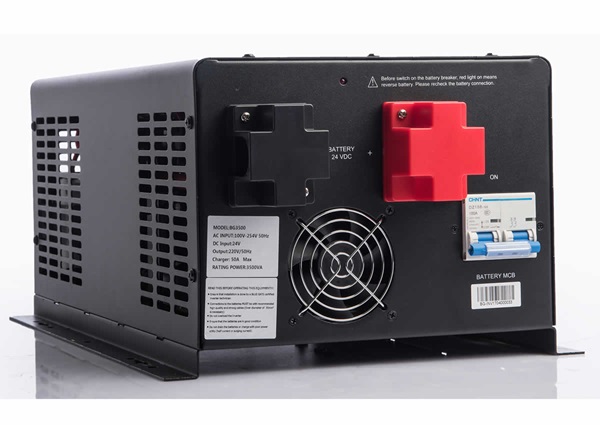

BLUE GATE 3.5kVA 24v INVERTER
PRICE: N395,000
Are you interested in this product?
Contact Sales:
08133686022, 08097039349
Email:
Description
BLUE GATE Inverters are built with
BLUE GATE Inverters are built with advanced technologies to meet users’ need for alternative power. Investing in BLUE GATE Inverters is a sure way of getting the right value for your money.Features
| Features | Benefits to Users |
| Pure Sine Wave Technology | Ensures quality power delivery to keep your equipment safe |
| Advanced Auto Sense Intelligent Control | Offers boost for high performance |
| Extended backup | Gives users flexibility to work and fun times |
| 8ms Typical Transfer Time Between Utility & Battery | Connected loads are not restarted during changeover times |
| Protective Edge | • 100% Protection for all Appliances (Rugged Technology)
• Overload with auto reset function. • Battery deep discharge protection. • Overload and short circuit protection. • Over temperature protection device. |
| Eco-friendly | • Noiseless in performance
• Pollution free |
| Advanced battery management | • Enhances battery life up to 70%
• Ensures faster battery charging |
| Wide input voltage range | • Ensures High Efficiency |
| Warranty | • Warranted for quality reliability for one year and above
• Swift after sales service and support |
Specifications
| SPECIFICATION OF BLUE GATE BG3500 INVERTER | |||
| Model | BG3500 | ||
| Capacity | 2500W | ||
| Battery Input | DC Voltage | 24V | |
| DC Voltage range | 20V – 30V | ||
| AC Input | Max input current | 25A | |
| Input voltage range | 155V – 280V | ||
| Input Frequency | 50Hz/60Hz (Auto testing) | ||
| Generator Compatible | Yes | ||
| Output | DC mode output voltage | 220V (± 10%) | |
| AC mode output voltage | 180 – 245V ± 5% | ||
| Output frequency | 50Hz/60Hz (± 0.3Hz) | ||
| Output waveform | Pure Sine Wave | ||
| ECO mode | <20W | ||
| Max Efficiency | >80% | ||
| Transfer time | 16 ± 4ms | ||
| Power factor | 0.8 – 1.0 | ||
| Inductance load | Yes | ||
| Capacitance load | Yes | ||
| Resistance load | Yes | ||
| Charger | Current Adjustment | 10 – 50A | |
| Voltage Adjustment | 26V – 30V | ||
| Charge mode | 3 step-Bulk, Boost, Float | ||
| Others | Display and Alarm | LCD, LED & Buzzer | |
| Working Temperature | 0°C – 40°C | ||
| Working Humidity | 5% – 95% Relative Humidity | ||
| Cooling way | Fan cooling | ||
| Weight (kg) | 22 | ||
| Dimension W*L*H (mm) | 360*630*293 | ||
